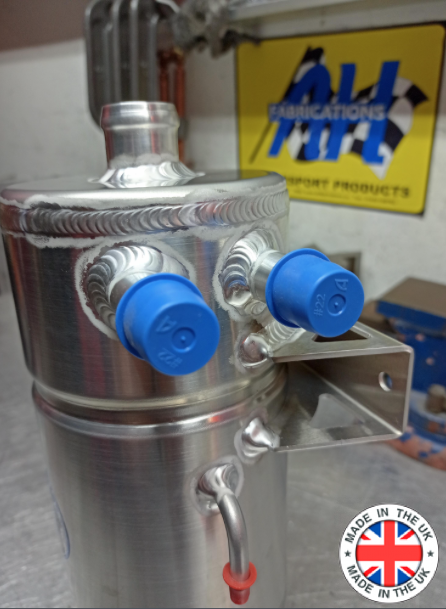

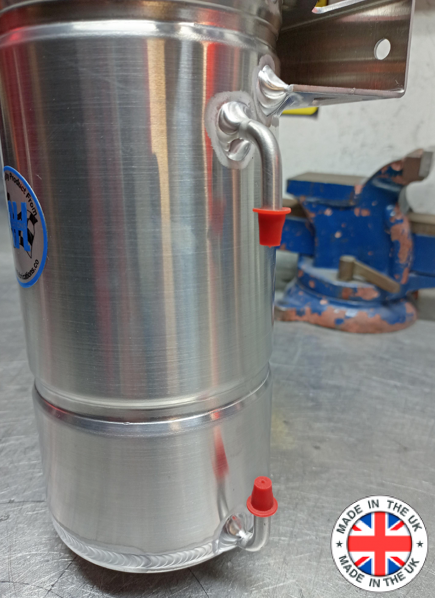

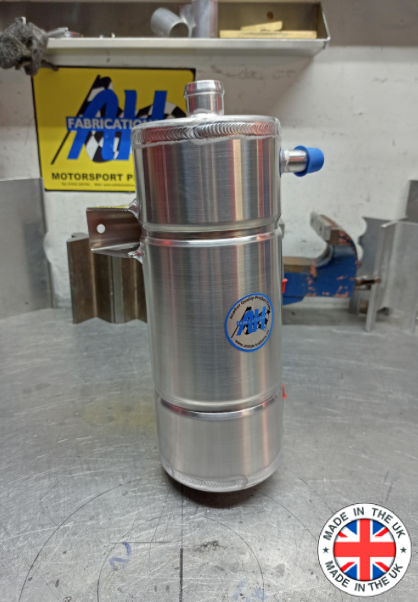

Our most popular oil catch tank in recent years has been the AHF002 2L catch tank. Its compact boxy design has been used by track day users, privateers, and big teams the world over. The AHF/O/219 takes the key 2 Litre dimension, and uses it in a more modern round design.
The tank has 2x 5/8in push on inlet connections, typically these would be connected to your cam cover(s). The 1in connection at the top is slightly sorter than normal, to neatly accept a K&N style push on filter, but would accept a hose equally well. There are a pair of 1/4in connections to facilitate a PVC sight level tube, an M8 drain & plug at the base, and a bulkhead mounting bracket.
2L capacity
4in diameter, 257mm tall body
295mm overall height
480g
2x 5/8in inlet
1in outlet
1/4in sight level connections
Bulkhead mounting bracket
M8 drain & plug
