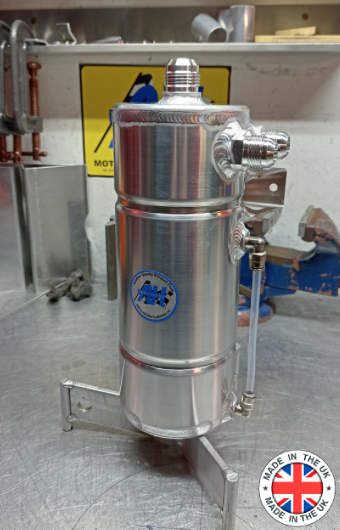

Our most popular oil catch tank in recent years has been the AHF002 2L catch tank. Its compact boxy design has been used by track day users, privateers, and big teams the world over. The AHF/O/220 takes the key 2 Litre dimension, and uses it in a more modern round design with AN10 and AN12 connections

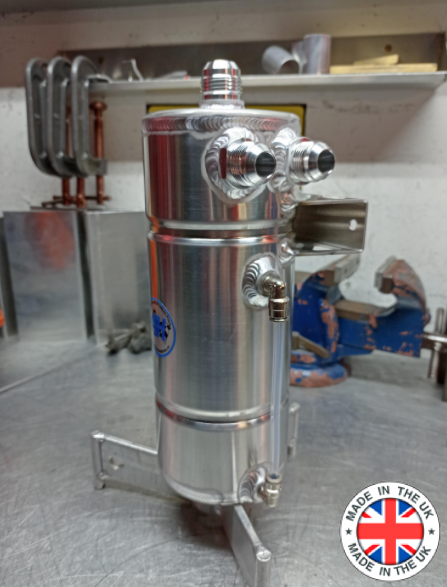

The tank has 2x AN10 inlet connections, typically these would be connected to your cam cover(s). The AN12 connection at the top would be connected to a filter and to the atmosphere. There is a high quality FEP sight level tube, an M8 drain & plug at the base, and a bulkhead mounting bracket.
2L capacity
4in diameter, 257mm tall body
295mm overall height
610g
2x AN10 inlet
AN12 outlet
FEP sight level tube

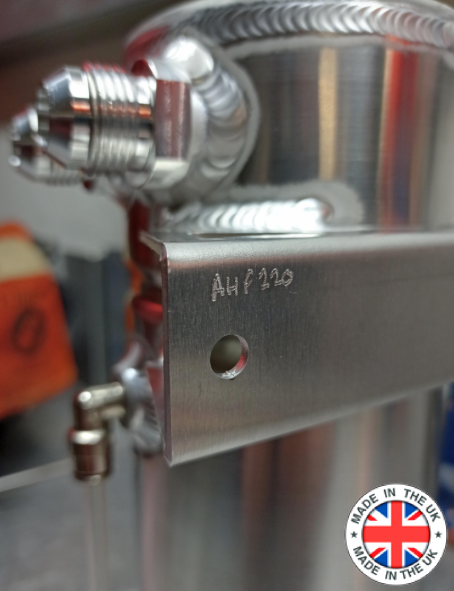

Bulkhead mounting bracket
M8 drain & plug
